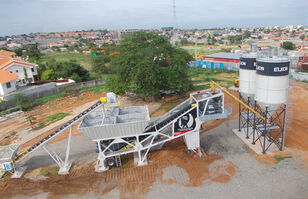

Nova Elkon MIX MASTER-30 On-Site Concrete Batching Plant fabrika betona

ELKON MIX MASTER-30 Mobile Concrete Batching Plant is a tiny special concrete plant for your small projects. Aggregate storage bins, mixer, weigh hoppers, power board and control panel are equipped on a trailer with axle and tires. Only 1-2 hours will be required to start up the concrete plant. It is possible produce concrete under international standards with its precise weighing system and fully automated control system.

GREAT ADVANTAGES OF ELKON MIX MASTER-30 MOBILE CONCRETE BATCHING PLANT

• Concrete plant with its cement feeding system can be transported by only 1 unit 40’ Open Top Container.
• It can be started up within 1 hour.
• Easy shifting from one jobsite to another one.
• Towed easily with integrated hood and axle with tires.
• No foundation cost.
• Minimum operational and maintenance costs.
• 30 m³/h actual production capacity with its separate cement, water and additive weigh hoppers.

Description of ELKON Mix Master-30 On-Site Concrete Batching Plant

Aggregate storage bins (2x5=10 m3) or (4x5=20 m3)
For 2 kinds of aggregates or 4 kinds of aggregates
Aggregate Transfer Conveyor
750/500 l. Pan mixer (Brand: ELKON)
Aggregate will be weighed on pan mixer
Cement weigh hopper (300 kg)
Water weigh hopper (200 kg) (galvanized)
Water Pump (20 m3/hour)
Additive weigh hopper (1x25 l.) (galvanized)
Air Compressor
Support Structure
Equipped with axle, tires and hook for easy transportation
Power Board and Control Panel (ABB or SIEMENS)
PLC, Touch Panel and electrical components
Bag Cement Feeding System or Cement Silo can be connected
Cement bunker (capacity: 1 m³, with grid and coverings)
Cement Screw (Diameter: Ø165 mm)

OPTIONAL EQUIPMENT UPON REQUEST OF CUSTOMER
Concrete Discharge Belt
To transfer vibrated concrete from mixer discharge to truckmixer (height: 4 meters)
Remote Controller with 6 Buttons
2 buttons for start-stop, 4 assignable buttons for different concrete recipes
