Marka:  Polygonmach
Model:  stationary hardstone crushing and screening unit , criblage conc
Tip:  postrojenje za drobljenje
Lokacija:  Turska YENİMAHALLE/ ANKARA /
Datum objavljivanja:  juče
Machineryline ID:  PL25277
Opis
Zampremina rezervoara:  55 m³
Performansa:  500 t/č
Stanje
Stanje:  novi

Dodatne informacije — Novo Polygonmach stationary hardstone crushing and screening unit , criblage conc postrojenje za drobljenje

Engleski
Hard stone crushing and screening unit 500 tons per hour capacity
55 m3 Vıbrating Grizzly Feeder 1
1100x850mm Jaw Crusher 1
1200x6000mm Belt Conveyor 1
1200x3300mm Belt Conveyor 1
30m3 Hopper Feeder 1
Metso HP400 Cone Crusher(Chassis, Software, Engine Included) 1
2400x6000mm Vibraitng Screen 1
800x30000mm Belt Conveyor 1
800x6000mm Belt Conveyor 1
800x17000mm Belt Conveyor 1
1000x33000mm Belt Conveyor 1
20 m3 Hopper Feeder 2
VSI900 2x200kw Vertical Shaft Impact Crusher 2
1000x10000mm Belt Conveyor 1
1000x28000mm Belt Conveyor 1
2200x6000mm Horizontal Vibraitng Screen 2
800x10000mm Belt Conveyor 1
600x10000mm Belt Conveyor 1
600x20000mm Belt Conveyor 5
1000x2000mm Belt Conveyor 1
Control Panel Climated Room 1

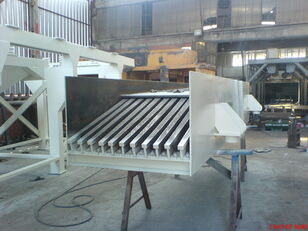

FEEDING HOPPER & GRIZZLY FEEDER -PPG
• Dimensions : 1350x6000 mm
• Hoppers Volume : 55 m3
• Feeding Capacity :500-700 tons/h
• Grill Dimension : 820 mm
• Main Body Thickness : 20 mm
• Body liners : HARDOX 450 – 10 mm
• Weight : 22.5 tonnes
• Vibromotors : 2 x 9,8 kW – KEMP-MEGATECH Brand, Origin: ITALY
• Walking platforms are included.
• 100rpm Vibrating Speed
• Bolted Type Extension Covers




2 JAW CRUSHER-PJC-13
• Feeding size : 1300 x 1100 mm.
• Capacity : 450-550 tph
• Power : Heavy duty AC motor, 160 Kw.1450 rpm

13- VERTICAL SHAFT IMPACT CRUSHER 2x200 kw
Model : VSI 900 -CR


7- VIBRATING SCREEN 2460/3
Dimension : 6.000 x 2.400 mm
Screen Decks : 4 pcs


CONVEYORS
3-BELT CONVEYOR : 1200 x 6.000 mm, 15 Kw motor power
4- BELT CONVEYOR : 1200 x 30.000 mm, 30 kW motor power
6- BELT CONVEYOR : 1200 x 24.000 mm, 22 kW motor power
8- BELT CONVEYOR : 800 x 30.000 mm, 18,5 kW motor power
9- BELT CONVEYOR: 800 x 6000mm, 5,5 kw motor power
10- BELT CONVEYOR : 800 x 17.000 mm, 11 Kw motor power
11- BELT CONVEYOR : 1000 x 33.000 mm, 22 kW motor power
14- BELT CONVEYOR : 1000 x 10.000 mm, 7,5 kW motor power
15- BELT CONVEYOR : 1000 x 28.000 mm, 22 kW motor power
17- BELT CONVEYOR : 800 x 10.000 mm, 7,5 kW motor power
18- BELT CONVEYOR : 600 x 10.000 mm, 4 kW motor power
19- BELT CONVEYOR : 600 x 20.000 mm,5PCS 7,5 kW motor power
20- BELT CONVEYOR : 1000 x 20.000 mm,15 kW motor power

4-12 VIBRATING HOPPER FEEDER
Volume: 30 cbm /20 m2


16-HORIZONTAL VIBRATING SCREEN
Model TE2260
Main Dimensions 2200mm X 6000mm

21- CONTROL CABINET AND AUTOMATION SYSTEM

• Dimensions : 2200x4000x2200 mm
• Electronic equipments : Siemens Brand
• Air conditioner 9.000 BTU
• Heat and noise isolated control cabinet
• Wiring between plant equipment and control panel is included.

• Climated and isolated prefabricated control room.
• Piano command table and control panels.
• Contactors, relays, main power switch and other electrical command devices are SIEMENS mark.
• Star / Delta start for crushers and delta start for other equipments.
• Cabling inside the control room is included.
• Cabling among the units is not included. Bunker and feeder have speed control.


Control of the plant is FULL AUTOMATIC and all the system is used via TABLET CONTROLLER automatically. Control panel includes the PLC, thermic relays, fuses, contactor, timing relays and buttons for the electric motors in the system.
Electrical and electronic components brands :
Wiring between control panel and equipm
