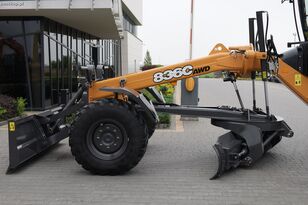

Case 836C AWD grejder

CASE 836C AWD
Price: 227 000 € without tax

Year of manufacture: 2024
Mileage ONLY: 15 hours
Weight: 12,800 kg
6-cylinder engine with 119 kW


MANUFACTURER'S WARRANTY: 12 MONTHS OR 2,000 HOURS

We also offer a model controlled by joysticks


CASE 836C (AWD) Grader Technical Specifications

Drivetrain:
NEF diesel, 6-cylinder, type FPT F67 NEF STAGE V, common rail, turbocharged, intercooled, 6.7 l, meeting the latest Stage V "Hi-eSCR2" emissions standard; patented selective catalytic reduction system with AdBlue
Power in gears 1-3: 102 kW (138 hp) according to ISO 14396/ECE R120; Power in gears 4-6: 115 kW (156 HP) according to ISO 14396/ECE R120;

Torque: 725 Nm at 1,400 rpm;
Full PowerShift transmission for shifting under load;
Number of forward gears: 6 (Vmax = 39.9 km/h);
Number of reverse gears: 3 (Vmax = 29.2 km/h);
Torque converter with a gear ratio of 1.87:1;
Tractive force: 85 kN

Hydraulic system:
▪ Variable-flow axial piston pump, maximum capacity: 94.5 l/min;
▪ Closed-loop load-sensing system with a pressure of 200 bar enables very high precision;
▪ System capacity: 185 l;

All-wheel drive:
Hydrostatic front-wheel drive with E.D.C.V. (Electronic Drive Control Volume) system, engaged in addition to the hydrodynamic rear-wheel drive. A bidirectional pump controls the motors located in the front wheel hubs. A hydraulic No-Spin differential regulates torque and prevents wheel spin. A microprocessor monitors and matches the drive power between the front and rear wheels. A stepless switch allows the operator to adjust the front wheel traction to current operating conditions. Standard creep mode: front-wheel drive only for maintaining very low travel speeds.
▪ Hydraulically controlled steering system;
▪ Turning radius (at the edge of the wheels) – 6.6 m;
▪ Six equal-size wheels with 405/70 R20 tires;
▪ Wet disc braking system acting on all four rear wheels;

▪ Front drive axle (6WD):
▪ Hydrostatic front wheel drive controlled by an electronic speed control system (EDCV); Axle oscillation - ± 15°;

Wheel tilt - ± 21.45°; Left/right steering angle - ± 40°;
Frame angle - ± 28°; Ground clearance - 0.485 m;

▪ Tandem rear axle:
Axle oscillation - ± 15°;
No-spin automatic differential lock;
4-wheel drive via chains;

Slewing ring:
▪ 360° rotation capability;
▪ Slewing ring diameter - 1.15 m;
▪ Enclosed slewing ring with internal lubrication of the slewing bearing, preventing contamination;

Electrical system and cab:
▪ Voltage: 24 V;
▪ Alternator: 90 A;
▪ Battery: 2 x 100 Ah;
▪ Cold start system for easy engine starting in low temperatures;
▪ Spacious, comfortable ROPS/FOPS cab equipped with air conditioning, work lights, adjustable steering column; comfortable, fully adjustable operator's seat; doors on both sides;

Operating parameters:
▪ Rear-mounted ripper;
Ripper width: 2.0 m;
Working depth: 0.361 m;
▪ Parallel-lift front blade;
Width: 2.35 m;
Height: 0.765 m;
Ground clearance under blade: 0.509 m;
Working depth – 0.136 m;

▪ Center blade;
Width – 3.355 m;
Height – 0.526 m;
Working depth – 0.456 m;
Blade clearance – 0.394;
Tilt angle – 49.5°;
Traverse left – 0.708 m;
Traverse right – 0.491 m;
Reach left without frame steering – 1.525 m;
Reach right without frame steering – 1.865 m;
Reach left with frame steering – 2.15 m;
Reach right with frame steering – 2.49 m;

Lift angle left – 76°;
Lift angle right – 117°;
▪ Machine weight ready for operation – 12,800 kg;
▪ Height – 3.24 m;
▪ Maximum length – 8.961 m;
▪ Width – 2.36 m (over tires);

Additional equipment included in the price:
▪ Heated FOPS/ROPS cab with air conditioning
▪ Comfortable, heated, air-suspended operator's seat
▪ All-wheel drive (AWD) 6x6
▪ Parallel front blade
▪ Center blade 3355 mm wide and 522 mm high - FLOATING
▪ 5-tooth rear ripper
▪ Back-up alarm
▪ Lighting for driving on public roads
▪ LED work lights
▪ Orange warning light
▪ Back-up camera

Price: 227 000 € without tax
