Güntner MULTISTAR ONE / MS ONE Two-fraction star screen industrijski šreder

No. 10017

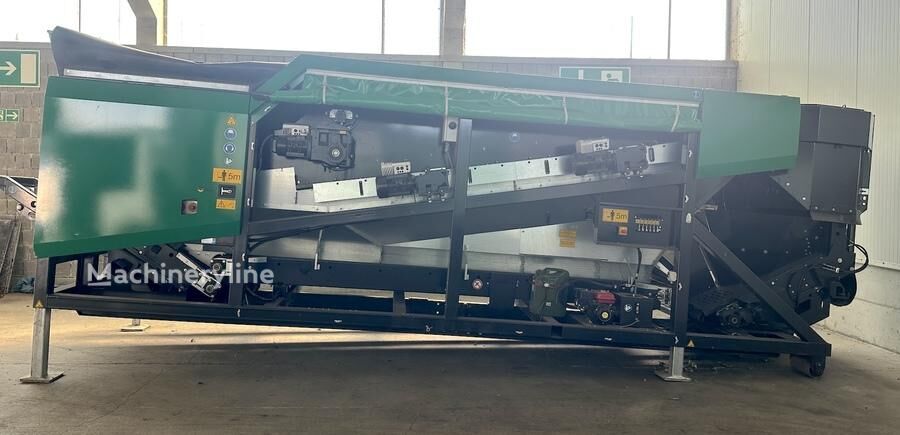

Two-fraction star screen GÜNTHER MULTISTAR ONE / MS ONE
Used, year of construction 2023
Approx. 200 operating hours
Mobile star screen for screening waste wood, biomass, green waste and other screenable materials in 2-fractions as well as for overlength recycling
- Input material: specific weight 200 - 650 kg/m³ / moisture input material max. 55% / piece size and individual weight max. 1000 mm and 20 kg / material feed with conveyor belt or wheel loader / throughput capacity up to 200 m³/h
- Control, operation, switch cabinet: Type PLC / Operation display, control panel / Manual or automatic operating mode / Power supply AC 400 V, 3P, 50Hz via 32A plug on site
- System interlinking: 16-pin plug connection / Cable (15 m) incl. winding device on base frame / Screen deck overrun for EMERGENCY STOP / Dummy plug in control cabinet door
- Hydraulic support legs: 4 hydraulic support legs / Increase the discharge height of the useful fraction by 450 mm / For optimum horizontal alignment of the machine / All support legs can be controlled individually
- Feed hopper: Capacity approx. 2.5 m³ / Feed height 2500 - 3000 mm / Free throw-in length 2300 mm / Conveying medium scraper chain conveyor with maintenance-free flat link chain / Drive 2.2 kW adjustable via frequency inverter
- Collecting belt: Center distance 4600 mm / Belt width 1000 mm / Belt type smooth / Drive slip-on geared motor 2.2 kW, v=1.2 m/s
- Connect: Connect! is the innovative telematics solution from Komptech / A modern and clear user interface means the user always has an overview of e.g. operating status, error messages, statistics, GPS localization, capacity utilization
- Petrol-powered hydraulic pump: For setting up the machine on site / 4-stroke petrol engine with hydraulic pump, brackets and housing / Starter cable pull / Normal petrol fuel
- HyDrive System 2.0 MS ONE
- Screen deck 60/90: Output: 0-60/90 and > 60/90 mm / Length 4500 mm / Width 1450 mm / Screen area 6.5 m² / Position 11° incline / Star shafts 17 pieces / Star diameter 340 mm / Star width 55 mm / Center distance 266.5 mm / Cleanstar cleaning elements / Drive motor 2 x 4 kW / Adjustable via frequency inverter
- Drive motors 50 Hz: geared motors for driving the screen deck / version 2x 4 kW 50 Hz
- Dosing roller: For even feeding of the material onto the screen deck / width 1560 mm / diameter 215 mm / drive 3 kW drum motor / with standard beater bar
- FKAB with magnetic drum: Center distance 6200 mm / Belt width 1000 mm / Installation position 30° inclined / Belt type profiled, 15 mm chevron / Drive 3.0 kW shaft-mounted geared motor, v=2.2 m/s / Usable discharge height 3500 mm - 3950 mm / Multi-pole magnetic drum in permanent version / incl. discharge chute
- Over-grain discharge conveyor: Center distance 6200 mm / Belt width 1000 mm / Installation position 30° inclined, 220° pivoting / Belt type profiled, 15 mm chevron / Drive shaft-mounted geared motor 3.0 kW, v=2.2 m/s / Usable discharge height 3600 mm - 4050 mm
- Hook: Machine base frame made of structural steel profiles with integrated hook lift mount for transport in accordance with DIN 30 722 / Length 7300 mm / Width 2300 mm / Height 2600 mm / Eye height 1570 mm
- Maneuvering drawbar: Screwable maneuvering aid with ball head mount
- Box for fire extinguisher: Plastic box for 6 kg fire extinguisher
Transport dimensions approx. 8176 x 2466 x 2600 mm LWH
Weight approx. 9200 kg
Sale on behalf of customer, ex location near 85456 Wartenberg, without dismantling, transport and assembly
Subject to errors in the description and price
Dismantling, transport and loading by us optionally possible
To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment
Sold as is
Technical details, condition description, year of manufacture and scope of delivery according to manufacturer's brochure or previous owner, without guarantee
Subject to prior sale
No warranty is given for used machines, the following applies: “purchased as viewed”
Images and videos serve as examples and do not represent the actual scope of delivery
Terms of payment: Prices excl. VAT, payment before collection or shipping
Terms of delivery: ex location
Our general terms and conditions apply, which can be viewed on the Internet at pokazati kontakte
Please pay particular attention to Article 9 regarding complaints and returns!
