Baykal BPM-T 1525X30 koordinatno probojna presa

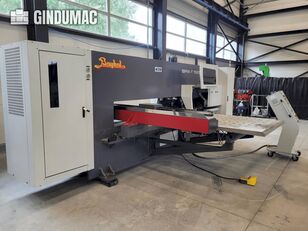

This 6-axis Baykal BPM-T 1525X30 was manufactured in 2020, featuring a robust 30-ton hydraulic punching force and a versatile tooling system with 20 stations and indexable tool holders. It supports a working range of 3000 × 1500 mm and rapid axis speeds (X: 100 m/min, Y: 80 m/min). Equipped with Bosch MTX CNC control and Lantek CAM software, it ensures precision and efficiency. If you are looking to get high-quality punching capabilities, consider the Baykal BPM-T 1525X30 machine we have for sale. Contact us for more information.
Location: PL
Control Brand: BOSCH
Control Model: MTX
Hydraulic Motor Power: 11 kW
Axes Drive Type (C1 and C2): Direct drive
Hydraulic Punching Force: 30 tons
Work Chute: Automatic system to take out cut parts
Maximum sheet thickness: 6. 4 mm
Maximum punching rate: 1 mm nibbling: 900 hits/min 25 mm nibbling: 580 hits/min
Maximum punching diameter (for 6. 4 mm thickness): 25 mm
Number of clamps: 3
Tables: movable in y axis
Table height: 980 mm
Movable table: 1300 × 5200 mm with ball transfers
The machine is in excellent condition, has only a few hours of operation, and is like new. Control Unit Control: Bosch MTX Operating System: Windows Hard Disk: 150 GB CPU: 2 GHz RAM: 2 GB Data Transfer: USB stick memory Display: 12" TFT LCD color screen Movement Axes: 6 (X, Y, Z, C1, C2, T) Axis Speeds: X: 100 m/min Y: 80 m/min X + Y combined: 128 m/min C1 / C2 rotation: 300 rot/min T axis: 20 rot/min Repositioning: Available Positioning Accuracy: ±0.1 mm Repeatability: 0.04 mm CAM Nesting Software: Lantek Turret Tool Rotation: Indexable Multitools Support: Available (3 or 8 tools) Total Number of Tool Stations: 20 Indexable Tool Holders: Standard 4 (option up to 10) Tool Change Time (multitools): 0.3 s Maximum Tool Change Time (turret): 3 s
Additional equipment
Portable CNC Control Panel
Mobile Storage Box for Cut Parts
Waste Box
Light Barriers
