Steton INDEX obradni centar za drvo

Spindle moulder manufactured in 2015. This STETON INDEX machine features a programmable electronic control system with a 10.4” color touch screen, allowing for efficient management of machining parameters. It includes two profiling spindles with a vertical stroke of 265 mm and a maximum tool diameter of 240 mm, providing versatility in operations. Consider the opportunity to buy this STETON INDEX spindle moulder. Contact us for further details.
Location: PL
Spindle Power: 7.5 kW
Usable length: 320 mm
Vertical stroke: 265 mm
Speed: 6000 rpm
Extraction outlet diameter: 150 mm
Rotation: clockwise / counterclockwise (anti-tear function possible)
Horizontal movement: pneumatic
Horizontal stroke: 150 mm
Spindle height: 80 mm
Feed speed: 3–15 m/min (variable)
Roller diameter: 120 mm
Feed motor power: 0.75 kW
Control system
Electronic control with programmable system
10.4” color TFT touch screen
Control of vertical movement of 1st and 2nd profiling spindles
Program memory for machine parameters
tools
and machining programs
Frame or single element processing management
USB port (data input
backup
service)
Automatic star–delta motor start
Self-braking electric motors
Emergency stop and limit switches
Profiling spindle 1
Pneumatic center guide
Profiling spindle 2
Usable length: 320 mm
Vertical stroke: 265 mm
Speed: 6000 rpm
Max. tool diameter: 240 mm
Pneumatic center guide
Motor power: 7.5 kW (15 A)
Extraction outlet diameter: 150 mm
Rotation: counterclockwise
Grooving spindle (3rd spindle)
Vertical stroke: 40 mm
Speed: 6000 rpm
Max. tool diameter: 200 mm
Rotation: counterclockwise

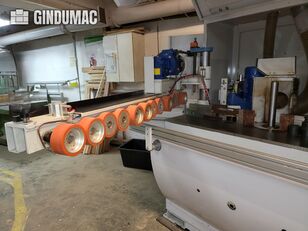

Feed unit
12 rubber-coated rollers
Pneumatic vertical adjustment of first two rollers (photo-cell controlled)
